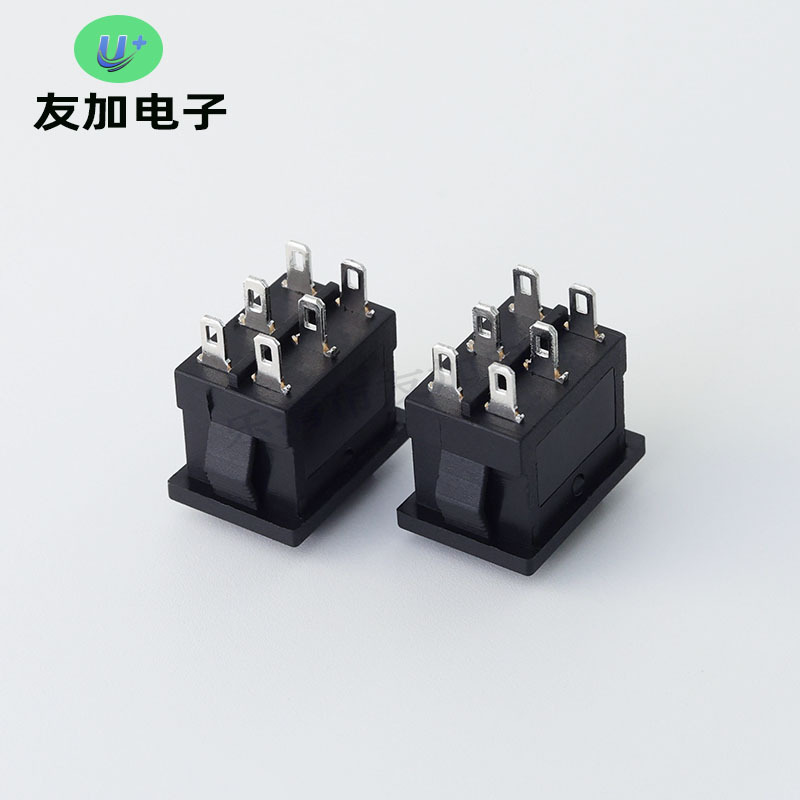

Upgrade Your Device with the Compact Power of the KCD11-3P Rocker Switch

In the world of electronics and appliance design, space is often at a premium, and reliability is non-negotiable. The KCD11-3P Mini Toggle Rocker Switch from Youjia Electronics is engineered to meet these exact demands. This compact, three-position, three-pin switch offers a robust solution for controlling circuits in a wide array of applications, from household appliances to industrial control panels.

Key Specifications and Durability Features

Don't let its small 10x15mm installation size fool you. This switch is built to last, featuring a sturdy PA66 shell that offers excellent insulation and heat resistance. With an IP65 protection rating, it is effectively sealed against dust and water jets, making it suitable for environments where cleanliness or minor splashes are a concern. Its 1,000,000-cycle mechanical life and 10,000-cycle electrical life at rated load ensure long-term, dependable operation.

Electrical Performance for Safe Operation

The KCD11-3P is rated for 3A at 250V AC/DC, making it perfectly suited for controlling standard power circuits in 220V regions. It boasts low contact resistance (≤30mΩ) and high insulation resistance (≤100MΩ), contributing to efficient power transfer and safe isolation. The switch can withstand a dielectric strength of up to 500V, providing an extra margin of safety against voltage spikes.

Versatile Design and Easy Installation

This versatile DPDT (Double Pole, Double Throw) three-position switch allows for complex circuit control, such as selecting between two different power sources or modes. The distinct red rocker actuator on a white base provides clear visual indication of its status. Installation is straightforward, supporting both quick-connect terminal and soldering methods for flexible integration into your wiring harness or PCB design.

Ideal Applications and Compliance

Its wide operating temperature range of -10°C to 85°C and CE certification make it a reliable choice for various projects. Ideal for use in kitchen appliances, power tools, instrumentation, automotive accessories, and other electronic devices requiring a compact, sealed, and durable control interface.

Conclusion

For designers and engineers seeking a high-quality, miniature rocker switch that delivers performance, durability, and safety certifications, the KCD11-3P from Youjia Electronics is an outstanding choice. Its combination of compact dimensions, robust construction (IP65, PA66), and reliable electrical specifications makes it a component you can specify with confidence for your next project.
