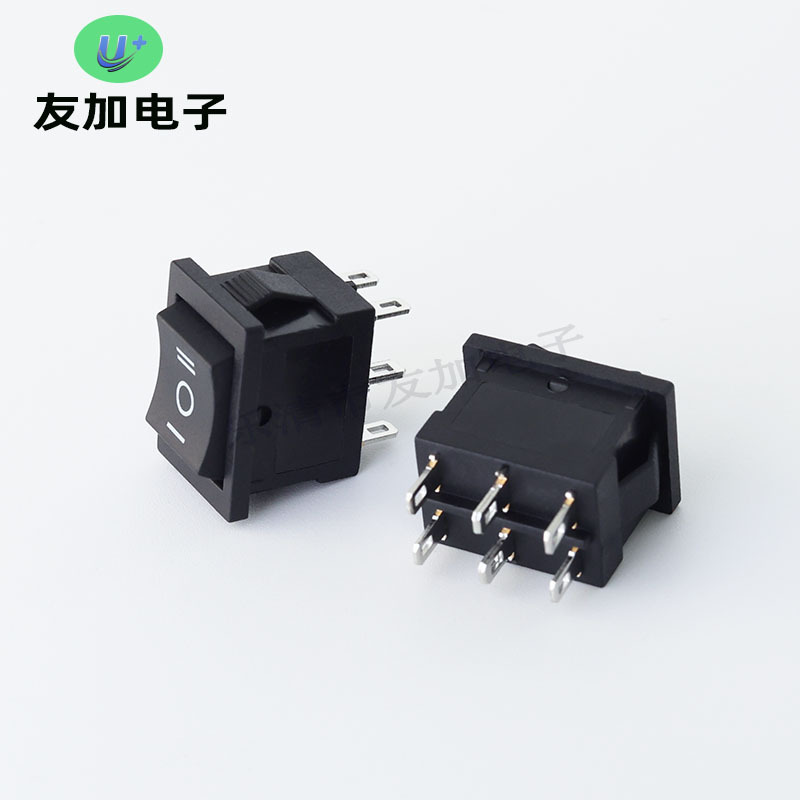

KCD11-3P Miniature Rocker Switch: Compact Power for Precise Control

In the world of electronic components, reliability and precision are paramount. The KCD11-3P miniature rocker switch from Youjia Electronics stands out as a superior choice for engineers and manufacturers seeking dependable switching solutions. This compact switch, measuring just 10x15mm, packs a powerful performance punch, making it an ideal component for a wide range of applications, particularly in home appliances and control panels.

Robust Construction and Design

Built with durability in mind, the KCD11-3P features a housing made from high-quality PA66 material. This engineering-grade plastic ensures excellent resistance to heat, impact, and wear, contributing to the switch's impressive mechanical life of 10,000 cycles. Its sleek white rocker with red and black accents provides a modern, miniaturized look that fits seamlessly into various product designs.

Superior Electrical Specifications

Don't let its small size fool you. This switch is rated for a robust 3A at AC/DC 220V, making it suitable for controlling significant loads in consumer devices. Key electrical parameters include a low contact resistance of ≤30mΩ, ensuring efficient power transmission with minimal loss, and a high insulation resistance of ≥100MΩ for enhanced safety. With a withstand voltage of 500V and certification for use with voltages below 250V (3C), it meets stringent safety standards, including CE marking.

Versatility and Environmental Protection

The KCD11-3P is designed for versatility. It offers a 3-pin, 3-position configuration (ON-OFF-ON), providing flexible control options. Its IP65 dust and water jet protection rating means it can perform reliably in environments where exposure to dust or incidental moisture is a concern. With an operating temperature range of -10°C to 85°C, this switch is built to handle challenging conditions, ensuring stable performance in everything from kitchen appliances to industrial control units.

Easy Installation and Reliable Sourcing

Installation is straightforward, offering flexibility with either quick-connect terminal or soldering connection options. This ease of integration helps streamline the assembly process. Backed by a 1-year warranty and a stated electrical life of 10,000 cycles, the KCD11-3P from Youjia Electronics represents a reliable, cost-effective component for both domestic production and global projects. It is a general-purpose component, readily available for your design needs.

Ideal Applications

This mini rocker switch is perfectly suited for a multitude of applications. Its primary use is in home appliance devices, such as small power tools, kitchen gadgets, lighting controls, and electronic instruments. Its compact footprint and reliable switching action make it a go-to component for designers looking to add a durable, user-friendly control interface to their products.

Conclusion

The KCD11-3P Miniature Rocker Switch combines compact design, robust electrical performance, and environmental resilience. For product developers requiring a reliable, certified, and versatile switching solution, this component from Youjia Electronics delivers exceptional value and performance. Its combination of size, specs, and protection makes it a smart choice for your next project.
