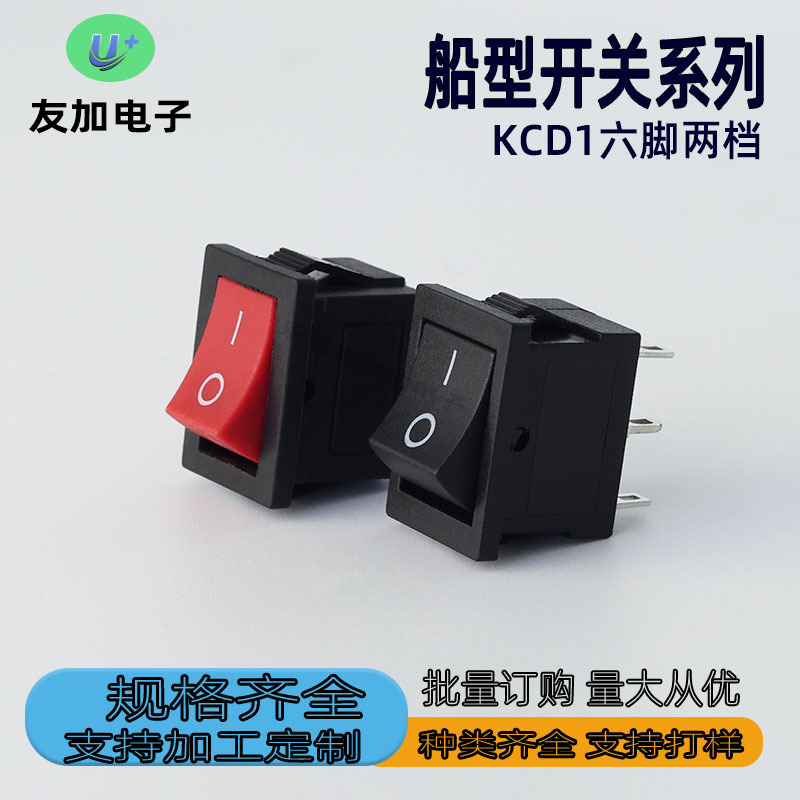

YuJia KCD1 2-Position Rocker Switch: Precision and Durability for Modern Electronics

In the world of electronic components, finding a reliable, durable, and versatile switch is crucial for product integrity and user safety. The YuJia Electronic KCD1 6-pin 2-position black rocker switch stands out as a premier choice for designers and manufacturers. Engineered for superior performance in a compact 15x21mm footprint, this switch is an ideal power control solution for a wide array of applications, from lithium battery-powered fans to various household appliances.

This blog delves into the key features, technical specifications, and practical applications of the KCD1 switch, illustrating why it is a trusted component in both domestic and international markets.

Unpacking the Technical Excellence

The YuJia KCD1 rocker switch is built to meet rigorous standards. With a 6A rated current and compatibility with voltages up to AC/DC 220V (250V below), it handles typical power loads with ease. Its low contact resistance (≤30mΩ) ensures minimal voltage drop and energy loss, while the high insulation resistance (≤100MΩ) guarantees safe operation. The switch is rated for an electrical life of 10,000 cycles, backed by an equally robust mechanical life of 10,000 cycles, promising long-term reliability.

Robust Construction for Demanding Environments

Durability is at the core of this switch's design. The PA66 material housing offers excellent mechanical strength, heat resistance, and stability. Combined with an IP65 protection rating, the switch is effectively shielded against dust ingress and low-pressure water jets, making it suitable for appliances that may encounter challenging environments. Its capability to operate in a temperature range of -10°C to 85°C further enhances its adaptability.

Versatile Applications and Easy Integration

The primary application for this 2-position (ON-OFF) rocker switch is in lithium battery fan power buttons, but its utility extends far beyond. It is perfectly suited for various home appliance equipment, including power supplies, control panels, lighting fixtures, and small tools. The D106-2档6脚黑 specification indicates a 6-pin terminal layout, providing flexible wiring options through either plug-in terminal or soldering. This versatility simplifies the assembly process for different production needs.

Safety and Compliance You Can Trust

Safety is paramount. The switch features a withstand voltage of 500V and carries the CE certification, affirming its compliance with European health, safety, and environmental protection standards. While it is not exclusively for export, its international certification makes it a viable component for global projects. The product comes with a 1-year quality guarantee, providing additional assurance of its manufacturing quality.

Why Choose the YuJia KCD1 Rocker Switch?

• Compact & Standard Size: 15x21mm mounting cutout fits common panel designs.
• High Reliability: 10,000-cycle electrical and mechanical lifespan ensures longevity.
• Superior Protection: IP65 rating offers dust and water resistance.
• Safe Operation: Low contact resistance, high insulation, and CE certified.
• Installation Flexibility: Choose between quick-connect terminals or soldered connections.

Conclusion

The YuJia Electronic KCD1 6-pin 2-position black rocker switch is more than just a component; it's a reliable link in your product's chain of functionality. Its blend of technical proficiency, robust construction, and certified safety makes it an excellent choice for engineers and product developers seeking a cost-effective, high-quality switching solution. Whether you're upgrading an existing design or embarking on a new project, this switch delivers the performance and peace of mind necessary for success in today's competitive market.

For detailed specifications, pricing, and to source this component, please refer to authorized distributors or the manufacturer's official channels.
