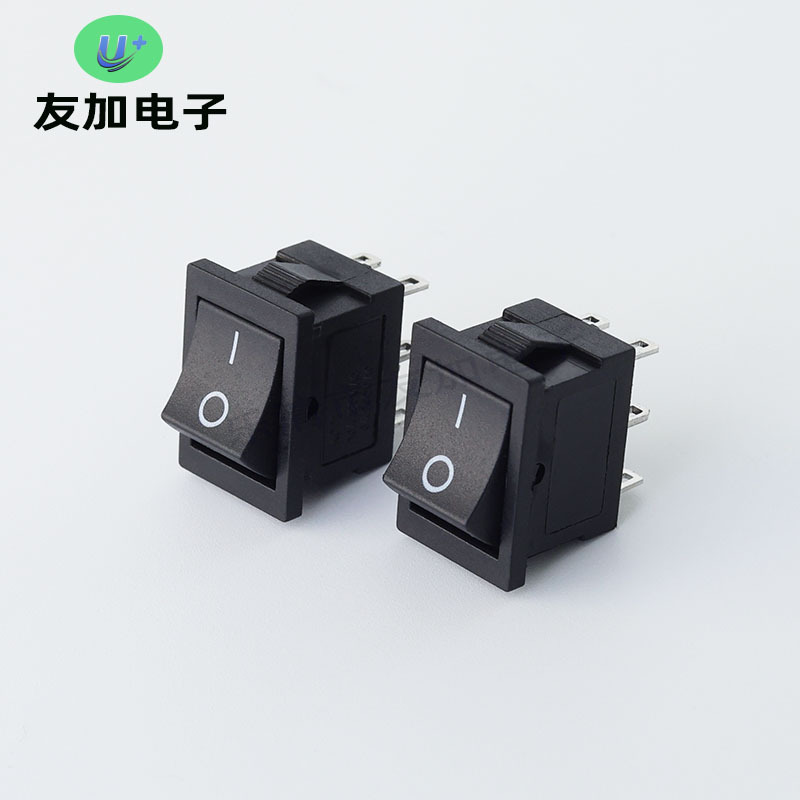

KCD1 6-Pin 2-Position Rocker Switch: A Compact Power Solution for Appliances

In the world of electronic components, finding a reliable, durable, and versatile switch is crucial for both hobbyists and manufacturers. The KCD1 6-pin 2-position rocker switch from Youjia Electronics stands out as an excellent choice for a wide range of applications, particularly in home appliances and DIY projects like lithium battery fans. This black, compact switch combines robust specifications with user-friendly design, making it a top-tier component for controlling power in your devices.

Let's delve into the key features that make this switch an indispensable part of your electronic toolkit.

Robust Electrical Specifications for Reliable Performance

The KCD1 switch is engineered for reliability. With a 6A额定电流 (Rated Current) and an AC/DC220V 额定电压 (Rated Voltage), it handles standard power requirements with ease. Its low 接触电阻 (Contact Resistance) of ≤30mΩ ensures minimal voltage drop and power loss, while a high 绝缘电阻 (Insulation Resistance) of ≤100MΩ guarantees safety. The switch is rated for an impressive 电气寿命 (Electrical Life) of 10,000 cycles and a matching 机械寿命 (Mechanical Life), promising long-term durability for frequent use.

Compact Design and Superior Build Quality

Measuring just 15x21mm in 安装尺寸 (Installation Size), this switch saves precious space on control panels. The 外壳材质 (Housing Material) is made from high-grade PA66, a thermoplastic known for its excellent thermal resistance and mechanical strength. This material choice allows the switch to operate reliably within a 工作温度 (Operating Temperature) range of -10°C to 85°C. The 船型开关 (Rocker Switch) design with a black actuator offers a sleek, modern look suitable for various products.

Enhanced Safety and Versatile Application

Safety is paramount. This switch boasts a 耐受电压 (Withstand Voltage) of 500V and comes with CE product certification. Its 防护等级 (Protection Level) of IP65 provides complete 防尘 (Dust Protection) and protection against low-pressure water jets from any direction, making it suitable for environments where dust or minor moisture is a concern. Primarily designed for 应用范围: 家电设备 (Home Appliance Equipment) like power supplies, fans, and lighting controls, its versatility extends to many low-voltage DC projects.

Flexible Installation and Dependable Support

The KCD1 offers flexible 接线方式 (Termination Methods), supporting both 插端子 (Quick Connect Terminals) for easy assembly and 焊接 (Soldering) for permanent, secure connections. Backed by a 质保 (Warranty) of 1 year, Youjia Electronics ensures confidence in your purchase. While 是否专供外贸: 否 (Not Exclusively for Export), its international CE mark indicates compliance with common global standards.

Ideal for Your Next Project

Whether you're building a custom lithium battery fan, repairing a household appliance, or designing a new electronic device, the KCD1 D106-2档6脚黑 (2-position, 6-pin, black) rocker switch from Youjia Electronics is a compact, powerful, and safe choice. Its combination of high electrical ratings, durable construction, and protective features makes it a superior component for ensuring reliable power control.

Upgrade your device's interface with this high-quality switch and experience the difference in performance and longevity.
