Master Precision Control with the YUJIA D11 Miniature 3-Position Rocker Switch

In the world of electronics and appliance design, finding a control switch that is both compact and highly reliable can be a challenge. Enter the YUJIA KCD11-3P Rocker Switch, a premium-grade miniature switch engineered to deliver exceptional performance in a tiny footprint. Designed for versatility and durability, this switch is an ideal solution for a wide range of applications, from home appliances to sophisticated DIY projects.

Engineered for Excellence: Key Specifications

This is not just any small switch. The YUJIA D11 series is built to meet rigorous standards, ensuring safe and long-lasting operation. Let's delve into the specifications that make it stand out:

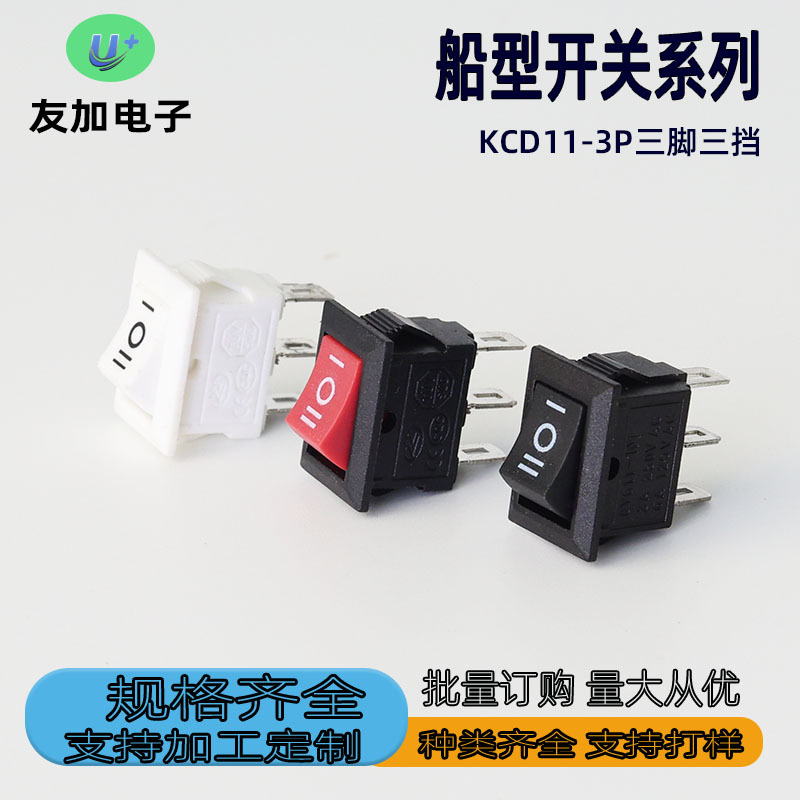

• Model & Configuration: KCD11-3P, D11 series. A 3-pin, 3-position (ON-OFF-ON) rocker switch offering versatile control logic.
• Compact Dimensions: With an ultra-small installation size of just 10mm x 15mm, it saves crucial panel space without compromising functionality.
• Electrical Ratings: Rated for 3A at 250V AC/DC, making it suitable for a broad spectrum of low to moderate power circuits. It features a low contact resistance (≤30mΩ) and high insulation resistance (≤100MΩ).
• Robust Construction: The housing is molded from high-grade PA66 material, known for its excellent mechanical strength, heat resistance, and electrical insulation properties.
• Environmental Protection: Boasting an IP65 rating, the switch is dust-tight and protected against low-pressure water jets, ensuring reliability in challenging environments.
• Safety & Compliance: The product is CE certified, adhering to European safety standards, and is rated for a withstand voltage of 500V.
• Longevity: Designed for 10,000 operations both electrically and mechanically, backed by a 1-year quality guarantee.

Versatile Applications for Home and Industry

Where can you use this versatile switch? Its application range is impressively broad. It's perfectly suited for various home appliance controls, such as in coffee makers, fans, lighting systems, or power tools. Hobbyists and electronics enthusiasts will find it invaluable for custom control panels, robotics, or model making. Its -10°C to 85°C operating temperature range and dust/water protection (IP65) also make it a candidate for outdoor equipment or industrial control interfaces where space is at a premium.

Easy Installation for Seamless Integration

The YUJIA D11 switch offers flexible connection options to suit different production or prototyping needs. It supports both quick-connect terminal for tool-free wire installation and traditional solder lug connections for a permanent, robust bond. The classic red and black color scheme with a white rocker provides clear visual indication of the switch state, enhancing user interface clarity.

Why Choose the YUJIA D11 Miniature Rocker Switch?

Choosing the right component is critical for product reliability. This switch combines compact design, certified safety (CE), high protection level (IP65), and a durable PA66 shell into one cost-effective package. Whether you are a product designer sourcing components or a maker working on your next innovation, the YUJIA KCD11-3P offers a reliable and professional switching solution that won't let you down.

Upgrade your control interface today with the precision and reliability of the YUJIA D11 Series Miniature Rocker Switch.
