Enhancing Battery Pack Safety and Conductivity with Jinshuanghe Connector Shims

In the intricate world of battery pack assembly, the reliability of every connection is paramount. Among the unsung heroes ensuring this reliability are connector shims and transition plates. Today, we spotlight a high-performance component designed for precision and durability: the Jinshuanghe Copper-Aluminum Composite Connector Shim. Sourced directly from Shenzhen, a global manufacturing hub, this part is engineered for excellence in electrical connectivity and mechanical stability.

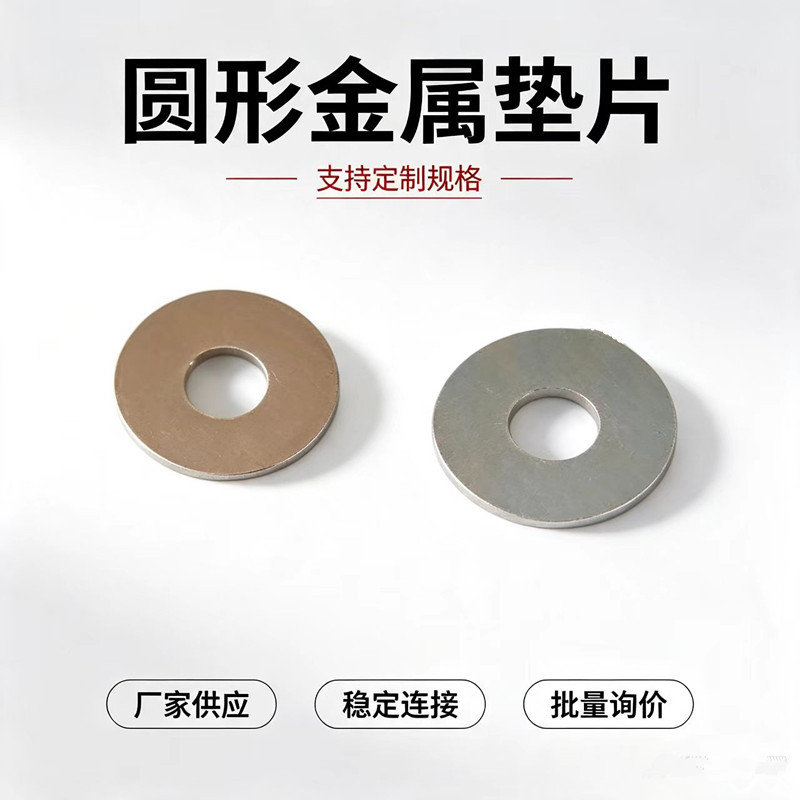

This specific model, identified by the part number 22D240709015-1-1 and the specifications Brass 20*1.0 (Aperture 10), belongs to the Battery Pack Auxiliary Materials series. Its primary function is connection fixation and electrical conduction, serving as a critical bridge between components within a battery module or across various electrical systems.

Key Features and Technical Superiority

What sets this connector shim apart is its innovative copper-aluminum composite core material. This combination leverages the excellent conductivity of copper with the lightweight and cost-effective properties of aluminum, offering an optimal balance for many applications. It is a customizable component, allowing manufacturers to tailor solutions for specific project needs.

The product boasts impressive mechanical and electrical specs:

• Tensile Strength: 12kg, ensuring it can withstand significant physical stress without failure.
• Rated Load: 1-300 Amperes, making it suitable for a wide range of power applications.
• Rated Voltage: A broad spectrum from 3.7V to 220V.
• Minimum Insulation Resistance: 1 Ohm (Note: This product does not have an insulating layer, so external insulation may be required based on the application).

Designed for Global Battery Assembly Platforms

This connector shim is engineered with the global supply chain in mind. Its primary downstream platform is battery pack assembly, and it is sold in major regions across the globe. Whether for electric vehicles, energy storage systems, or portable electronics, this component provides a reliable and efficient connection solution. Its non-imported, domestically produced status in Shenzhen ensures consistent quality and supply chain stability.

Ideal Applications and Usage

The Jinshuanghe Connector Shim is perfect for creating secure, low-resistance joints where a screw or bolt is used for fastening. It acts as a transition piece or washer, improving contact and current flow. Common uses include:

• Connecting battery cells in series or parallel within a pack.
• Providing a stable connection point for busbars or cables.
• Serving as a conductive spacer in various electrical equipment assemblies.

Conclusion: A Small Part with a Big Impact

In conclusion, the Jinshuanghe Copper-Aluminum Composite Connector Shim is more than just a piece of hardware; it's a precision-engineered component vital for modern electrical and battery technology. By choosing this high-quality, customizable shim from a trusted brand like Jinshuanghe, manufacturers invest in the reliability and safety of their final products. For your next battery assembly or electrical connection project, consider this essential component as your go-to solution for superior conductivity and紧固 performance.
