Unlocking Precision and Durability: Your Guide to Custom Bakelite Sheets

In the demanding world of industrial manufacturing and electrical engineering, material choice is paramount. Professionals require substrates that offer exceptional dimensional stability, reliable electrical insulation, and resilience under thermal stress. For applications ranging from PCB drilling to custom jigs and fixture plates, phenolic Bakelite sheets have proven to be an indispensable solution. Today, we spotlight a premium-grade, custom-manufactured Bakelite sheet that sets a new standard for performance and versatility.

Superior Material, Engineered for Performance

This product, known as the Diaobao Model Bakelite-1, is crafted from high-grade phenolic resin. Renowned for its excellent mechanical and electrical properties, Bakelite is a thermoset plastic that remains stable under pressure and heat. Our sheets are manufactured to rigorous specifications in Shanghai, ensuring consistent quality and reliable supply without the complexities of imported materials.

Key Specifications and Technical Advantages

Understanding the technical data is crucial for selecting the right material. Our Bakelite sheets are designed to meet the toughest industrial challenges.

• Heat Resistance: With a continuous service temperature rating of 120°C, these sheets provide reliable thermal insulation and stability for high-temperature environments.
• Exceptional Flatness: A remarkably low warpage of 0.1 guarantees precision in machining and assembly, critical for jigs and模具夹板 (mold clamping plates).
• Comprehensive Sizing: Available in a versatile thickness range from 1mm to 30mm, with a standard sheet size of 1200mm in width and 2000mm in length. Custom dimensions are our specialty.
• Visual and Functional Coding: Offered in three distinct colors—Black, Red, and Orange. This allows for easy part identification, organization, and aesthetic customization in your workspace.

Wide-Ranging Industrial Applications

The true value of this Bakelite sheet lies in its broad applicability. It is the material of choice for engineers and fabricators across multiple sectors.

Electronics & PCB Manufacturing: Primarily used as 垫板 (backing boards) for PCB drilling, it protects drill bits and ensures clean, precise hole creation without fraying or de-lamination.

Electrical Systems: Perfect for fabricating components in high and low-voltage配电箱 (distribution boxes), switchgear, and insulating barriers due to its superb dielectric strength.

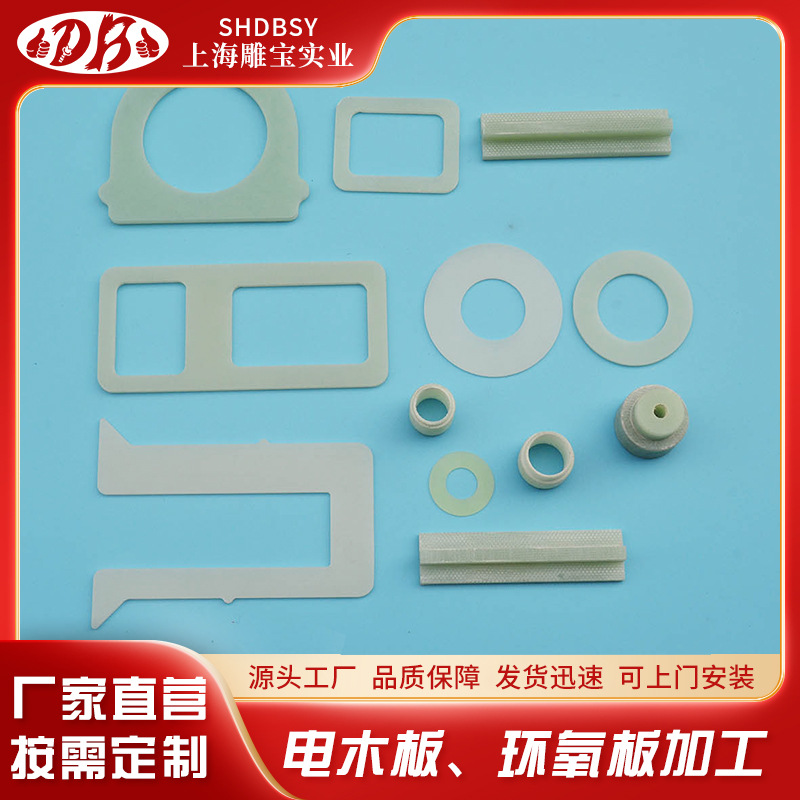

Tooling and Automation: Excellently suited for creating durable 治具板 (jig plates),模具夹板 (mold clamping plates), and parts for machinery like packaging equipment. Its machinability allows for intricate custom shapes.

Your Partner in Custom Fabrication

We go beyond supplying standard sheets. Our core service is customization. Whether you need a specific 订货号 (order number) for your inventory or a complete 来样加工 (sample-based machining) service, we adapt to your blueprint. Our light customization services include贴牌 (private labeling), allowing you to brand the product as your own. From the initial 货号 (item number) Bakelite-Engraving to the final product, we ensure every piece meets your exact requirements for fit, function, and finish.

Why Choose Our Bakelite Sheets?

Choosing our product means investing in reliability, precision, and partnership. You benefit from domestically produced quality (非进口 non-imported), certified for internal rigorous standards, backed by the reputable Diaobao brand. We provide the material foundation that empowers your innovation—from prototyping to full-scale production.

Ready to enhance your manufacturing capabilities? Explore the potential of custom Bakelite sheets. Contact us today to discuss your project specifications, request a quote, or place a sample order. Let's build something precise and durable together.
