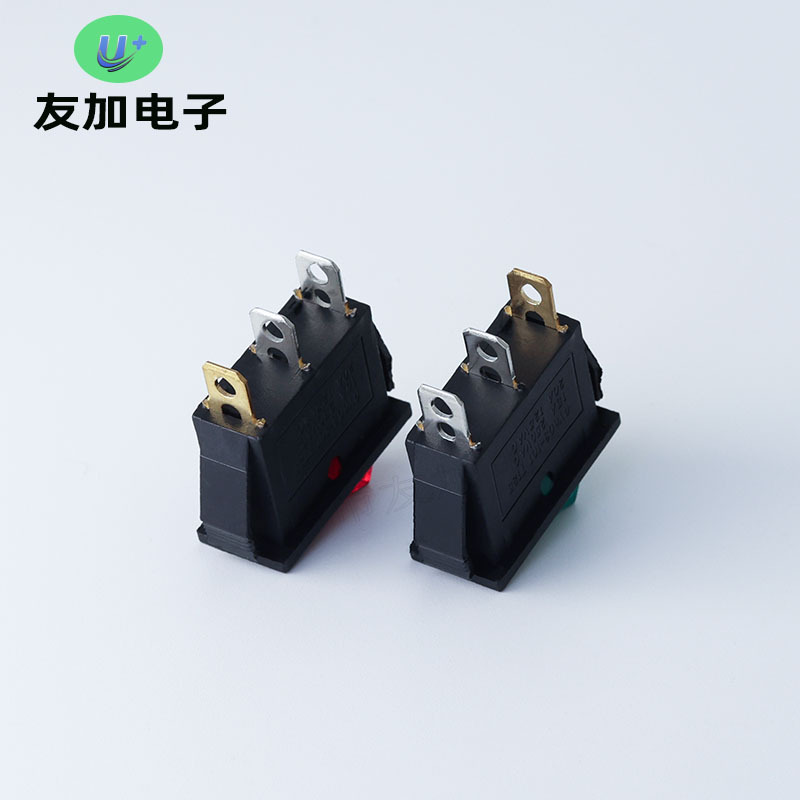

KCD1 Round Rocker Switch: Compact, Reliable, and Illuminated for Your Projects

In the world of electronics and appliance design, finding the perfect switch that balances size, functionality, and durability is key. The KCD1 series round rocker switch stands out as a premier choice for engineers, hobbyists, and manufacturers. This compact switch, requiring only a 15mm mounting hole, is engineered for performance in a wide range of applications, from home appliances to industrial control panels.

Certified to meet CE standards, this switch guarantees safety and quality. It is rated for 3A at 250V AC/DC, making it suitable for controlling various low to moderate-power devices. With an impressive electrical life of 10,000 cycles and a matching mechanical lifespan, it promises long-term reliability. The built-in illumination provides clear visual status feedback, a critical feature in dimly lit environments or for user-friendly interface design.

Robust Construction and Environmental Protection

Constructed with high-quality PA66 material for the housing, this switch offers excellent resistance to heat and impact. Its IP65 rating signifies full protection against dust ingress and low-pressure water jets from any direction, ensuring operational integrity in challenging conditions. The operating temperature range of -20°C to 85°C further broadens its suitability for diverse climates and environments.

Technical Specifications at a Glance

This 2-position, 2-pin switch features low contact resistance (≤30mΩ) and high insulation resistance (≤100MΩ), ensuring efficient power transfer and safety. With a withstand voltage of 500V and a 6-month warranty, it provides peace of mind for both prototyping and mass production. The convenient plug terminal or solder lug wiring options offer flexibility for different assembly processes.

Ideal Applications

The KCD1 rocker switch is versatile. Its primary use is in household appliances, power supplies, and various electronic equipment where a compact, illuminated power switch is needed. Its aesthetic round design and reliable switching action make it an excellent component for creating professional and user-friendly products.

Brand: Youjia Electronics
Mounting Hole Diameter: φ15mm
Rating: 3A/250V AC/DC
Protection Level: IP65
Lifecycle: 10,000 operations
Color Option Shown: Red Cap

Upgrade your device's interface with the dependable KCD1 illuminated rocker switch. Its blend of compact dimensions, clear illumination, and robust protection makes it an outstanding component for any project demanding quality and performance.
