KCD1 Illuminated Round Rocker Switch: Compact, Durable & Versatile

In the world of electrical components, finding a reliable, compact, and user-friendly switch is crucial for both appliance manufacturers and DIY enthusiasts. The KCD1 series round rocker switch, specifically the 2-pin, 2-position with illumination model, stands out as an exceptional choice. Designed to fit a standard 15mm mounting hole, this switch combines robust performance with a sleek, modern design, making it ideal for a wide range of applications from household gadgets to industrial control panels.

Key Specifications and Superior Build Quality

This switch is engineered for longevity and safety. It boasts a rated load of 3A at 250V AC/DC, ensuring compatibility with most low-power electrical devices. The construction uses high-grade PA66 material for the housing, providing excellent insulation and mechanical strength. With an impressive electrical life of 10,000 cycles and a matching mechanical lifespan, it promises reliable operation over an extended period. Key specifications include a contact resistance of ≤30mΩ, insulation resistance of ≤100MΩ, and a withstand voltage of 500V, all of which contribute to its safe and efficient performance.

Designed for Safety and Easy Integration

Safety and ease of installation are paramount. The KCD1 switch comes with CE certification, adhering to international standards. Its IP65 protection rating makes it dust-tight and protected against low-pressure water jets, allowing it to perform reliably in challenging environments. The switch operates comfortably within a temperature range of -20°C to 85°C. It offers flexible termination options with either plug-in terminal or solder lug connections, catering to different assembly line requirements or hobbyist projects.

Ideal Applications for Your Projects

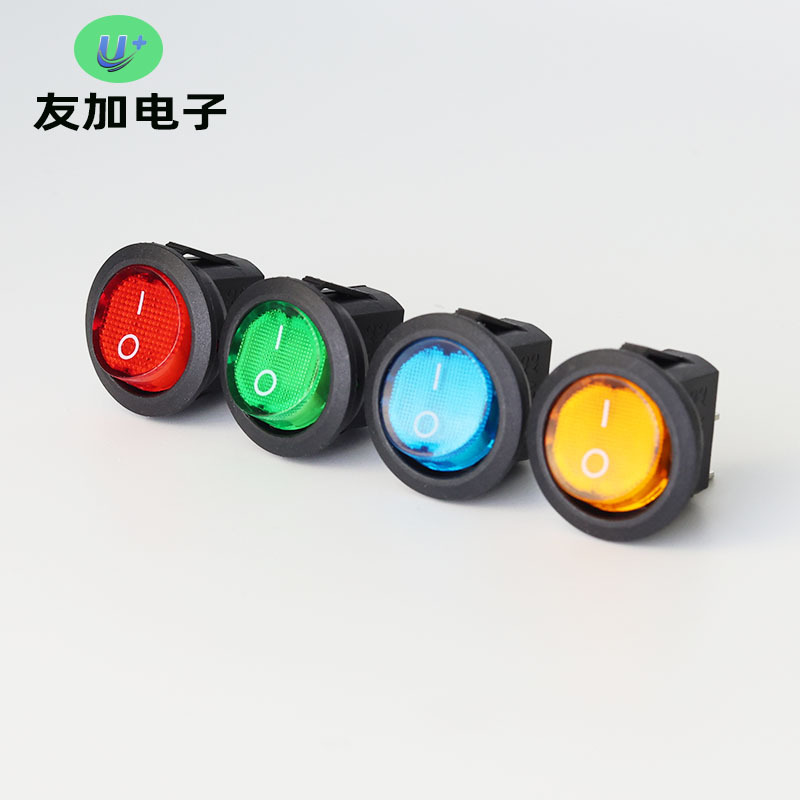

The versatility of this illuminated rocker switch is one of its greatest strengths. Its compact size and reliable switching action make it perfect for integrating into various home appliances, power supply units, test equipment, commercial lighting controls, and industrial machinery. The built-in LED indicator (available in different colors like the featured red cap) provides clear visual feedback on the device's operational status, enhancing user experience.

Why Choose This Rocker Switch?

Choosing the right switch impacts the quality and safety of your final product. This KCD1 switch from Youjia Electronics offers a compelling combination:

• Compact Design: Fits a standard φ15mm panel cut-out, saving valuable space.
• Durability: 10,000-cycle lifespan ensures long-term reliability.
• Environmental Protection: IP65 rating for use in dusty or damp conditions.
• Clear Indication: Integrated illumination for instant ON/OFF state recognition.
• Global Compliance: CE certification facilitates use in various markets.

Whether you are sourcing components for mass production or working on a custom electronic project, this 2-position rocker switch delivers the performance, safety, and value you need.
