1J50 Permalloy Straight Wire: The Engine of Precision Magnetic Cores

In the world of advanced electronics and instrumentation, the quest for materials with exceptional magnetic properties is relentless. Components demand precision, stability, and reliability. This is where specialized alloys like 1J50 Permalloy come into play, serving as the silent workhorse in critical applications. Today, we delve into a specific form factor of this remarkable material: the High Permeability 1J50 Permalloy Straight Wire from Wocheng Industrial.

Permalloy, a nickel-iron alloy, is renowned for its high magnetic permeability and low coercivity. The 1J50 variant, with its meticulously controlled nickel content of 49-50% (Ni50±1%), offers an outstanding balance of soft magnetic properties. This makes it an ideal candidate for applications where efficient magnetic flux transfer and minimal energy loss are paramount.

Why Choose This 1J50 Permalloy Straight Wire?

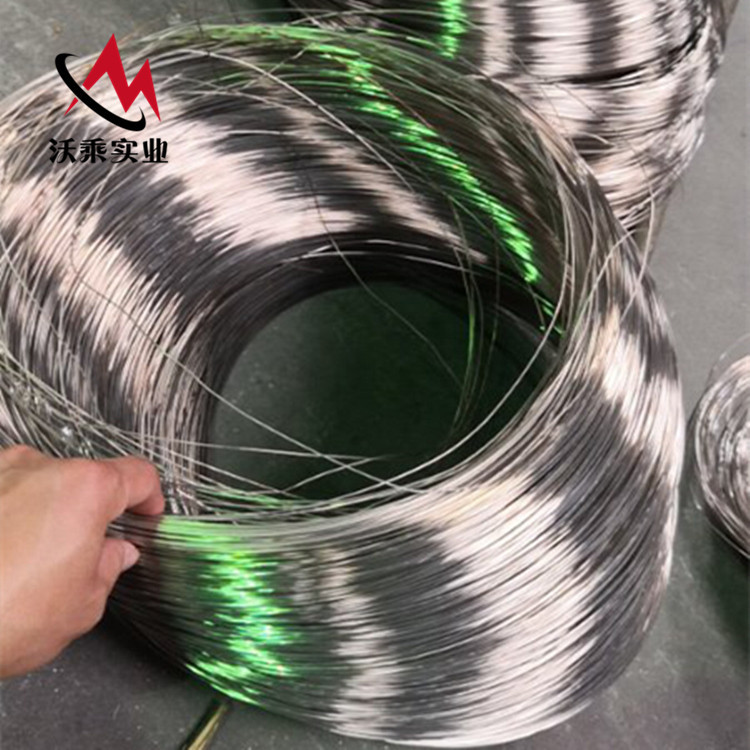

The product listed under item number wcsyj5321 is more than just a wire; it's a component engineered for performance. Supplied in the vacuum annealed state, this wire achieves its optimal soft magnetic characteristics, ensuring low hysteresis loss and high initial permeability right out of the package. The vacuum annealing process is crucial as it removes impurities and internal stresses, resulting in a material with consistent magnetic behavior.

Key Specifications and Advantages:

• Superior Composition: With an exceptionally low impurity content of ≤0.01%, the alloy's magnetic properties are highly predictable and stable.
• Precision Dimensional Range: Available in diameters from 6mm to 165mm, this straight wire format offers versatility for machining into various core shapes, bobbins, or custom magnetic elements.
• Exceptional Magnetic Softness: The combination of precise nickel content and vacuum annealing yields a material with high saturation induction and minimal core loss, essential for sensitive instruments.
• Origin and Quality: Manufactured in Shanghai under the Wocheng Industrial brand, this product adheres to stringent quality control standards, ensuring batch-to-batch consistency.

Applications: Where Precision Meets Performance

This 1J50 straight wire is not a commodity item; it's a specialized solution. Its primary use lies in the fabrication of high-performance magnetic cores for demanding sectors. Engineers and manufacturers utilize this material in:

• High-Frequency Transformers and Inductors: For switching power supplies and telecommunications equipment where efficiency is critical.
• Magnetic Shielding: Creating enclosures that protect sensitive devices from external magnetic interference.
• Precision Instrumentation: Components in sensors, relays, and measuring devices that require stable and linear magnetic response.
• Aerospace and Defense Electronics: Where reliability under stringent conditions is non-negotiable.

The straight wire form factor is particularly valuable. It provides a raw material that can be precisely wound, stamped, or machined into complex laminations or core assemblies, offering designers flexibility in creating custom magnetic circuits.

Conclusion: Investing in Magnetic Excellence

Selecting the right magnetic material can define the success of an electronic design. The 1J50 Permalloy Straight Wire from Wocheng Industrial represents a commitment to quality and performance. Its controlled chemistry, specialized annealing state, and versatile size range make it a superior choice for engineers seeking to push the boundaries of efficiency and precision in magnetic components.

For projects that cannot compromise on magnetic performance, specifying this high-grade 1J50 alloy wire is a step toward ensuring longevity, reliability, and optimal function in the final application. It’s not just wire; it's the foundation for innovation in electromagnetic design.
